Description

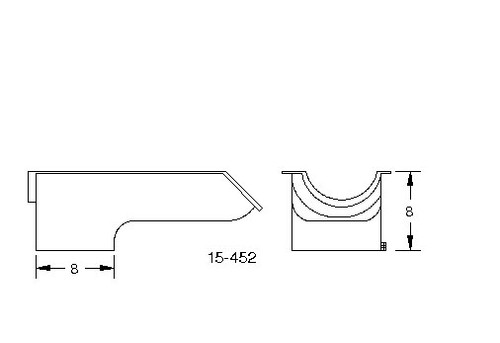

This road race pan is for Pontiac 301-455 engines and fits all G.T.O.'s and '67-'69 Firebirds. It has an 8" deep, 8" long sump for a 6 quart system capacity. This pan requires our 15-401 pickup M54DS/M10541.
Oil Pan Features
* 6 qt System Capacity
* Triple Trap Door Baffle
* Removable Windage/Anti-Slosh Baffle
* 1/2" NPT Temperature Bung
* Provision For Our Pan Mounted Dipstick
* Magnetic Drain Plug
Recommended Accessories
15-401 - Pickup with 3/4" Inlet for M-54DS or M-10541 Oil Pumps
20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
20-918 - Windage Tray Pontiac Screen
20-918P Windage Tray Pontiac Pro Tray
22-310 - Stud Kit For Oil Pan Mounting Big Block Chevy
88-400 - Pontiac Oil Pan Gasket
Product Tech
Best Results Installing an Oil Pan (PDF)
Reviews (0)
Be the first to review this product.
Additional Info
- Warranty:
- Canton Racing Products, Inc. warrants that when our products are properly installed in their correct application they will be free from defect. Any product returned for warranty must be returned to Canton Racing Products, Inc. within 1 year of purchase. All returns must include the original sales slip or proof of purchase, detailed information regarding the problem, your name, address and phone number.
- Condition:
- New
- Availability:
- 2-7 Business Day Via UPS Ground (Orders placed after 2:30pm EST will be processed the next business day)
- Capacity:
- 6 Quart System Capacity
- Application Type:
- Road Racing
- Sump Style:
- Deep Sump
- Material:
- 16 Gauge Steel
- Stroke:
- 4.5
