Description

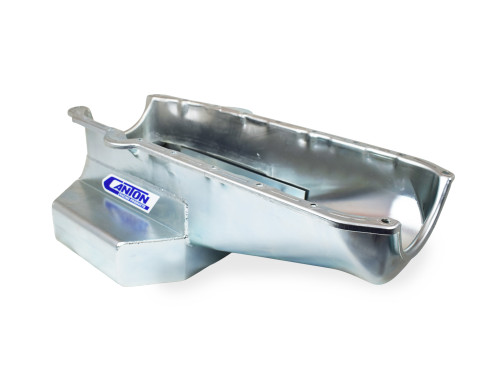

This SBC road race oil pan is for '86 and newer blocks with one piece seal. It is designed for x-member clearance in '78 and up F bodies, without cross over exhaust. It has a 7-1/2" deep, 13-3/4" wide, 10-1/2" long sump, for a 7 quart system capacity. This pan requires one of our pickups.
Oil Pan Features
* 7 qt System Capacity

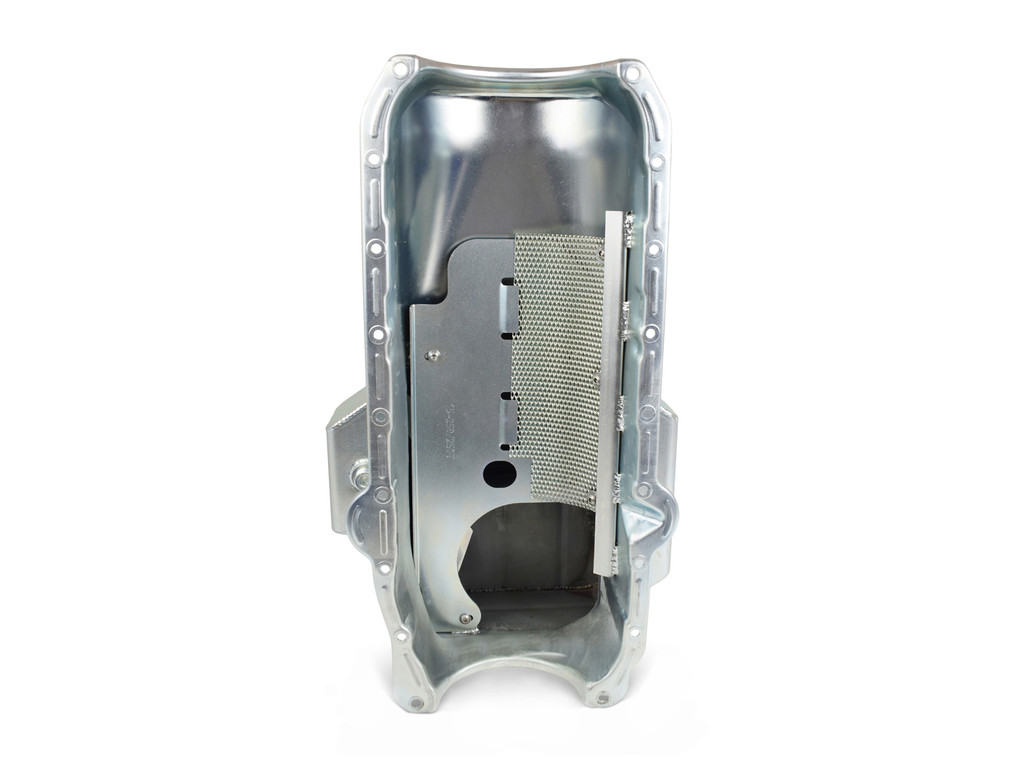

* Five Trap Door Baffles
* Crank Scraper

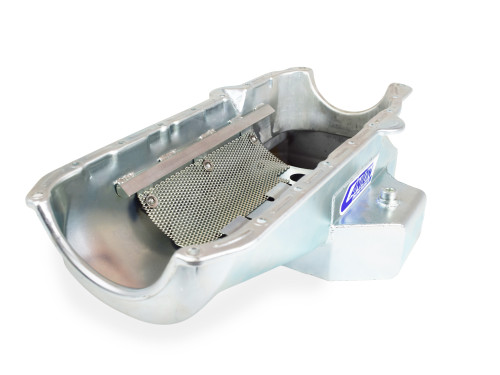

* Built In Screen Windage Tray
* 1/2" NPT Temperature Bung
* Magnetic Drain Plug
Recommended Accessories
20-010 - Pickup for SBC Standard Volume Oil Pumps M55 & M55A
20-013 - Pickup for SBC Standard Volume Oil Pump M155 with 3/4" Inlet
20-020 - Pickup for SBC High Volume Oil Pump M55HV
20-023 - Pickup for SBC High Volume Oil Pump M155HV with 3/4" Inlet
20-021 - Bolt-On Pickup for Melling M10555 Pumps
20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
22-300 - Stud Kit For Oil Pan Mounting Small Block Chevy/Oldsmobile/AMC
88-100T – SBC 86+ Oil Pan Gasket
Product Tech
Best Results Installing an Oil Pan (PDF)
Reviews (0)
Be the first to review this product.
Additional Info
- Warranty:
- Canton Racing Products, Inc. warrants that when our products are properly installed in their correct application they will be free from defect. Any product returned for warranty must be returned to Canton Racing Products, Inc. within 1 year of purchase. All returns must include the original sales slip or proof of purchase, detailed information regarding the problem, your name, address and phone number.
- Condition:
- New
- Availability:
- 2-7 Business Day Via UPS Ground (Orders placed after 2:30pm EST will be processed the next business day)
- Capacity:
- 7 Quart System Capacity
- Finish:
- Clear Zinc Chromate (Silver)
- Material:
- 16 Gauge Steel
- Application Type:
- Road Racing
- Sump Style:
- T-Sump
- Engine Type:
- Small Block Chevy
- Stroke:
- 3.75
